CaTiO BATTERY SOLUTIONS

LOCATION：HOME > SOLUTIONS > CaTiO BATTERY SOLUTIONS
Perovskite slit coating machine

Introduction
For photovoltaic substrate coating, applicable substrate: glass, PET, CPI and other cover plate


Characteristics

1.Control system: touch screen +PLC control
2. Coating thickness control: the input thickness is automatically adjusted
3. The film thickness is calculated by the liquid flow rate and the substrate moving speed
4. High coating uniformity, wide range of applicable coating viscosity, fast coating speed,
The coating system is closed to prevent contamination and can produce large area coating film.

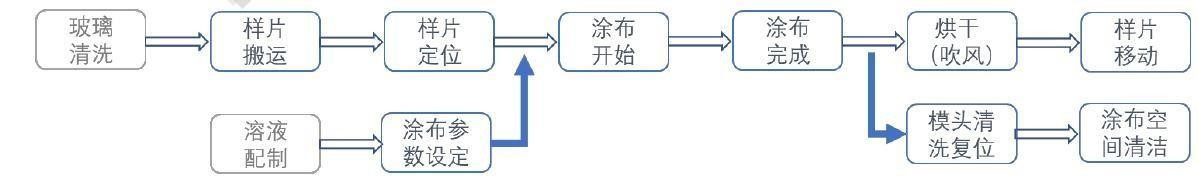

    Technology



主流程 Δ


Parameter

Project

Specification

Equipment size

1200mm*600mm*1800mm

Platform accuracy

±5μm（100mm）

Moving platform

Marble platform + air float module + raster ruler

Coating accuracy

±0.001mm

Coating rate

2-200mm/s

Coating width

10-200mm

(Coating length 0-400mm)

Vacuum adsorption size

200*400mm (customizable)
